Angle encoders from HEIDENHAIN: a solution for every rotary axis

HEIDENHAIN angle encoders enable high-accuracy angular measurement down to a few arc seconds. Various design options offer the optimal solution for any application: sealed versions for high robustness, modular solutions for maximum flexibility in the application, and angle encoder modules with an integrated precision bearing. As a result, process reliability and positioning accuracy are always perfectly matched to the given scenario.

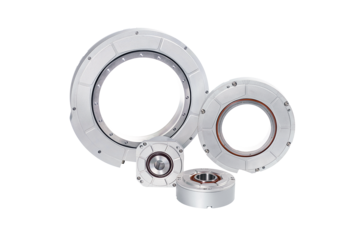

Angle encoders with integral bearing

Thanks to their very high system accuracy, angle encoders with an integral bearing are ideal for demanding applications such as machine tools and printing machines.

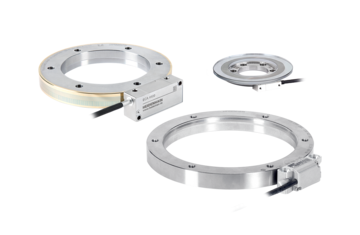

Modular angle encoders

These angle encoders can be perfectly matched to the application, offering a choice of optical or magnetic scanning and numerous combinations of circular scales, scale drums, and scanning heads.

Angle encoder modules

The optimal interplay between these angle encoders and their high-precision bearings results in high measurement and bearing accuracy, very high resolution, exceptional repeatability, and the added benefit of easy installation.

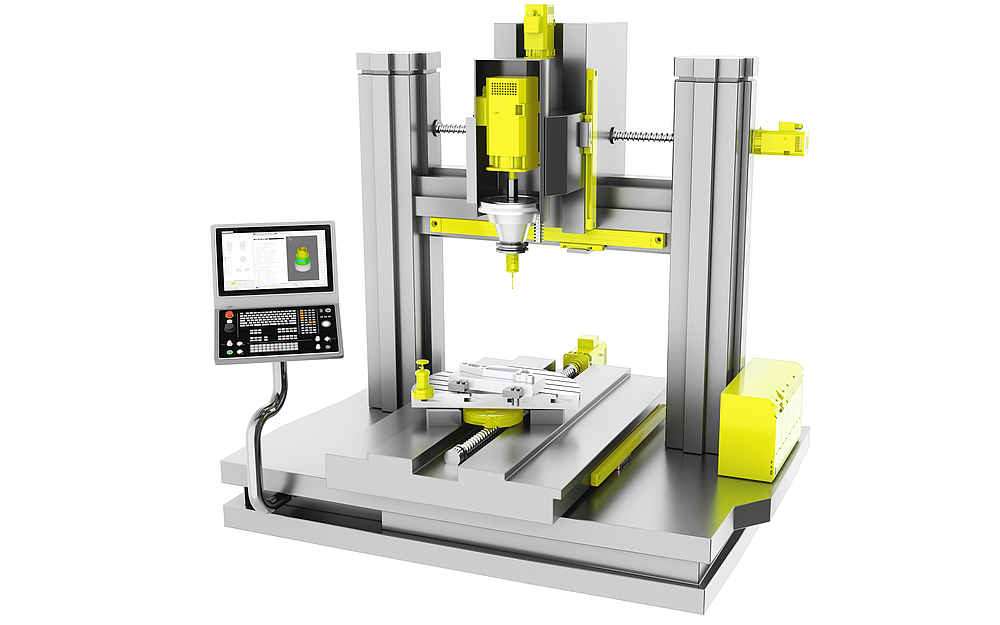

How much time and CO2 can you save with new HEIDENHAIN products?

Time spent during machine setup

Purged air

Installation of DA 400
Cabeling of purged air cable per encoder
Number of LC axes with purged air
Number of RCN axes with purged air

Temperature cabling

Cabeling of analogue cable for temperature
Number of axes with temperature cable

Energy cost

Energy cost per kWh in €

Your calculation results
